1. Maximum Clearing Area & Efficiency

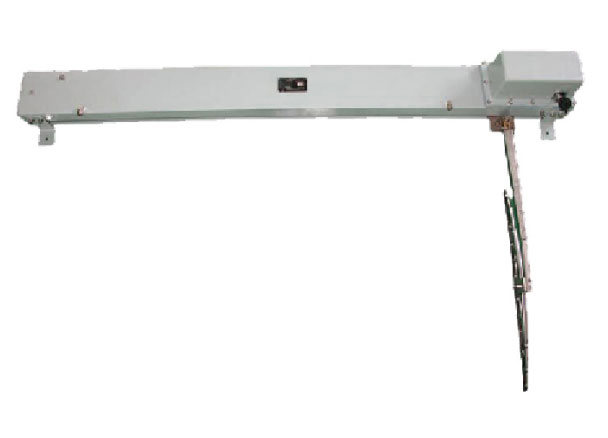

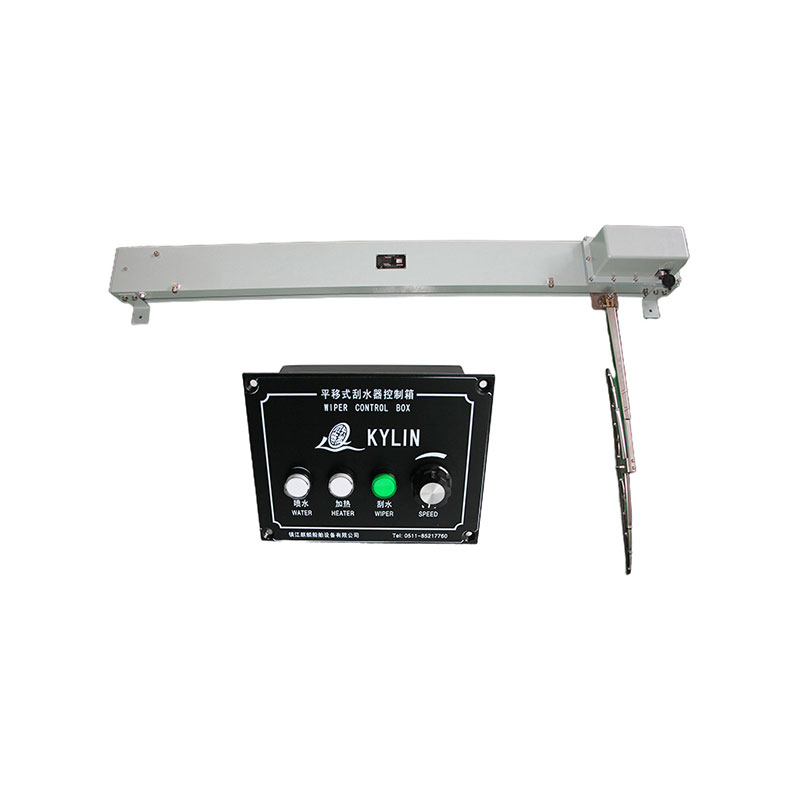

Our horizontal electric window wipers are engineered to provide superior visibility compared to traditional radial wipers. By utilizing a linear reciprocating motion, the wiper blade covers over 85% to 90% of rectangular window surfaces, eliminating the blind spots common with oscillating models. This synchronized linear window clearing system ensures that bridge personnel have an expansive, unobstructed view of the horizon, which is critical for the safe docking and maneuvering of large container ships and tankers in torrential rain or heavy spray.
2. Marine-Grade Durability & Corrosion Resistance
Constructed from premium SUS316L stainless steel and marine-grade aluminum alloys, our wipers are built for the harshest offshore environments. The components undergo a rigorous 1,000-hour neutral salt spray test to guarantee zero corrosion in high-salinity conditions. The heavy-duty internal drive mechanism is sealed to IP56 standards, preventing water ingress even during intense wave impact. This robust construction ensures a long service life with minimal maintenance, even when exposed to continuous UV radiation and extreme temperature fluctuations from -30°C to +70°C.
3. Advanced Control & Synchronized Operation

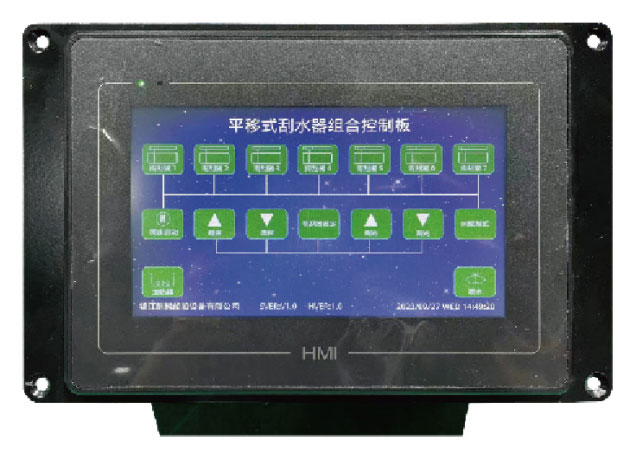

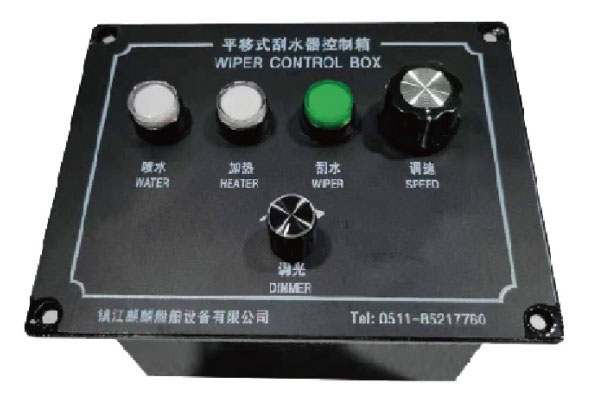

Equipped with an intelligent Electronic Control Unit (ECU), our marine heavy-duty wiper systems support multi-unit synchronization. This allows all bridge wipers to move in perfect harmony, preventing visual distractions for the navigator. The system offers variable speed control (ranging from 30 to 60 cycles per minute), intermittent settings, and an automatic self-parking feature that returns the blade to the side of the window when deactivated. This precision control ensures optimal performance tailored to the severity of the weather conditions.
4. Low Noise & High Wind Resistance
Navigational safety requires a quiet bridge environment. Our wipers utilize precision-engineered brushless DC motors and low-friction guide rails, keeping operational noise levels below 50dB. Despite their quiet operation, these units are designed to withstand high-velocity winds up to 150 km/h (approx. 80 knots). The reinforced blade arm maintains consistent pressure across the glass, ensuring a clean, streak-free wipe without lifting, even when the vessel is facing gale-force winds or traveling at high service speeds.
1.Power Supply:AC220V;
2.Power Frequency:50Hz/60Hz;
3.Wipe Speed:0.3~1.2m/s;
4.Consumed Power Of Motor:≤500W;
5.Consumed Power Of Heater:≤100W;
6.Protection Grade:IP56;
7.Weight:≤28kg;
8.Optional Parts:Heater.Waterworks.

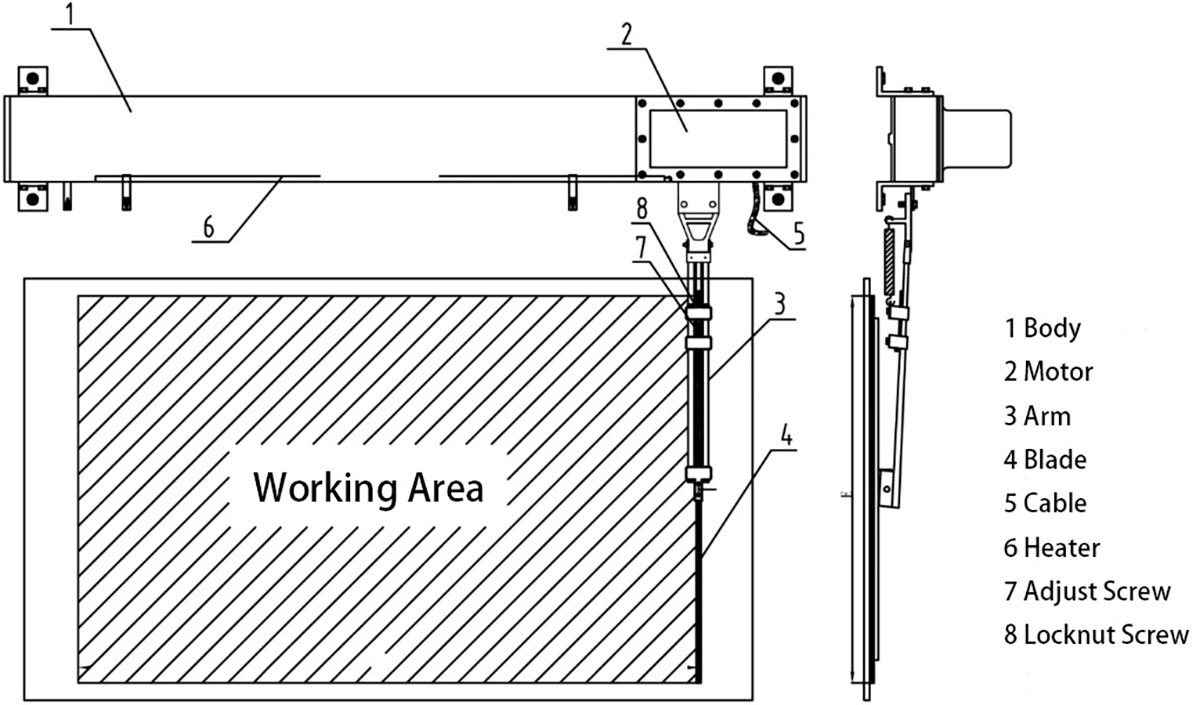

Installation
Type | Power Supply | Body Length | Wiper Stroke | Arm Length | Blade Length |
WGP-JR | AC220V | 1000~3000 Customizable according to customer requirements | 500~2600 Customizable according to customer requirements | 400~800 Determined by the central height | 400~1000 Determined by the height of the wiped glass |
Ocean-Going Tankers and Large Container Ships
On massive tankers and container vessels, horizontal electric wipers are the preferred choice for primary bridge windows. Because these vessels feature large, rectangular glass panes, linear motion provides the widest possible clearing area, eliminating the blind spots common with traditional oscillating models. This expansive visibility is critical for captains when navigating narrow channels or performing complex docking maneuvers in torrential rain and heavy salt spray, ensuring the safe transport of high-value cargo and the safety of the entire crew.
Harbor Tugs and Specialized Pilot Boats
Harbor tugs and pilot boats require extreme precision when approaching larger vessels or navigating rocky coastlines. The horizontal wiper's ability to clear a large, square section of the window allows the pilot to maintain eye contact with target structures and water surface levels simultaneously. This level of clarity is far superior to the "fan" shape of oscillating wipers, significantly reducing the risk of accidental impact during towing or boarding operations in choppy waters and low-visibility weather conditions.
Operating Guide for Marine Clear View Screens
To ensure optimal performance and navigational safety, follow these simple steps:
1. Startup: Activate the power switch on your bridge console. The motor will accelerate the glass disk to full speed (1400+ RPM) within seconds, instantly clearing rain or spray.
2. Weather Adaptation: In arctic or humid conditions, turn on the integrated heater to prevent icing and condensation on the frame.
3. Safety First: Never touch the rotating disk while in motion. The high-speed rotation is powerful; keep all objects away from the spinning surface.
4. Daily Care: After sailing, rinse the exterior with fresh water to remove salt deposits. The brushless motor is designed for continuous operation during severe storms.
Q: What is the main advantage of a horizontal wiper over a traditional oscillating one?
A: The primary advantage is the clearing area. Horizontal wipers cover over 85-90% of a rectangular window, whereas oscillating wipers leave significant blind spots in the corners. This linear motion provides a much wider, unobstructed view, which is essential for safe navigation in high-seas and stormy conditions.
Q: Can these wipers withstand long-term exposure to salt spray and corrosive marine air?
A: Absolutely. Our wipers are constructed from SUS316L stainless steel and marine-grade alloys, passing a 1,000-hour neutral salt spray test. All electrical components are sealed to IP56 standards. This robust design ensures the system remains corrosion-free and fully functional even in the harshest saltwater and offshore environments.
Q: How does the synchronization feature work for multiple window installations?
A: Our systems use an intelligent Electronic Control Unit (ECU) that links multiple wipers together. When the "Sync" mode is activated, all wiper arms move in perfect harmony across the bridge windows. This prevents the staggered movement that can distract a navigator, providing a clean, consistent visual field.
