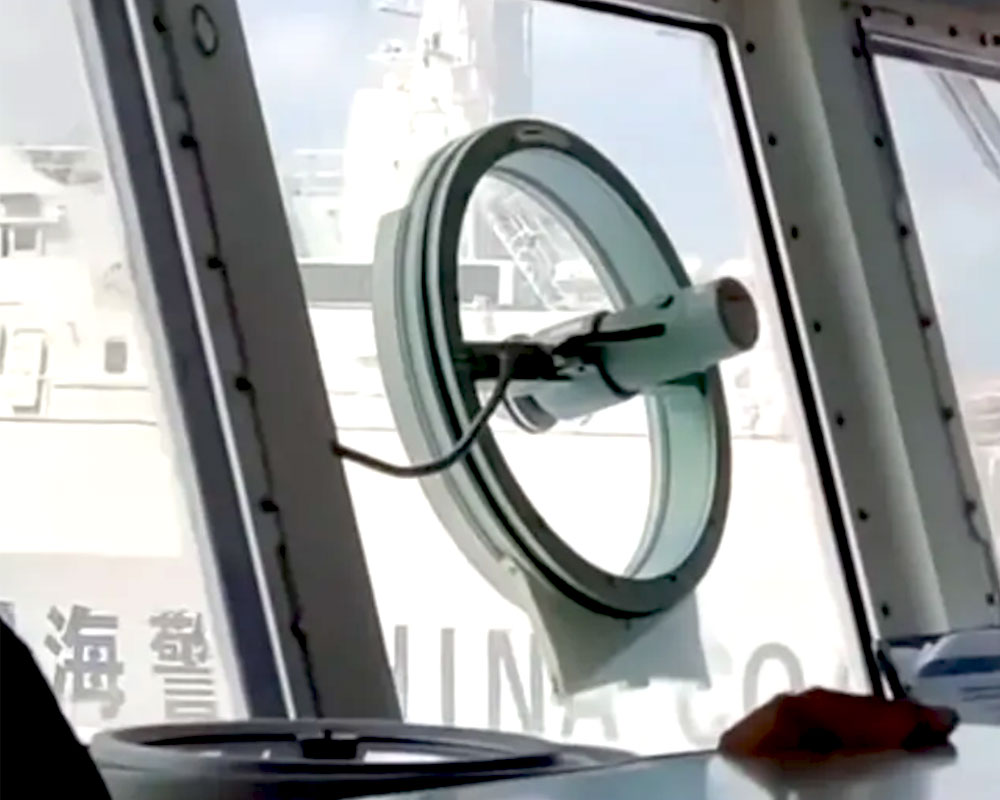

Marine Clear View Screen also called rotating window clear. It is composed of main frame, motor and glass disk, this view screen fits ship cabs. It spins to fling off waves/rain/snow via centrifugal force, keeping vision clear. Optional electric heating melts ice in low temperatures, preventing freezing.
It is easy to install on tempered glass or metal walls, ideal for harsh marine environments, which provides all-weather clear visibility for various vessel wheelhouses with its efficient de-icing and water-repelling performance, as well as reliable adaptability to low-temperature environments, further upgrading navigation safety.
Core Technology: Dual Protection of Centrifugal Force + Electric Heating, Unobstructed Vision in Severe Weather.
For low-temperature ice and snow conditions, the screen can be optionally equipped with an electric heating device that quickly melts ice and snow, completely eliminating the problem of ice and snow accumulation on the glass and main frame, ensuring stable operation in a wide temperature range of -25℃ to +55℃.
Hardcore Parameters: Adapted to Marine Scenarios, Balancing Performance and Reliability
The product is deeply tailored to meet vessel navigation needs, with technical parameters fully aligned with high industry standards:
Power Compatibility: Standard marine voltage of AC220V 50Hz, enabling plug-and-play installation.
Flexible Specifications: Available in two models, WS-300CR (translucent diameter φ300mm) and WS-350CR (translucent diameter φ350mm), to suit different wheelhouse installation requirements.
Efficient and Low-Consumption: Rotation speed ≥1400rpm, window power consumption ≤90W, and electric heating power consumption ≤250W, ensuring efficient operation while controlling energy use.
High Protection Rating: Motor protection class IP22, and window protection class IP55 during operation, resistant to corrosion from marine environments such as humidity and salt spray.
Lightweight Design: The entire unit weighs ≤12kg, reducing vessel load pressure and making installation and maintenance more convenient.
Replacement the Old CVS: If it is same our CVS, you just need to advise the model. If it is different diameter of the installation hole, and our WS-300CR can fit for the hole diameter range from 341mm to 345mm & 350mm to 352mm; The WS-350CR CVS can fit for the hole diameter 391mm to 395mm.
Scenario Adaptation: Full Sea Coverage, Safeguarding All Types of Vessels
Whether for merchant ships, fishing boats, or engineering vessels, the WS series Marine Clear View Screen excels in complex navigation scenarios such as high-latitude ice zones and rainy/snowy sea areas. In extreme weather conditions like storms, blizzards, and icing, the device continuously maintains clear visibility without manual intervention, significantly reducing crew maintenance costs and fundamentally mitigating navigation risks such as collisions and groundings caused by severe weather, thus establishing a solid barrier for the safe operation of vessels.
Quality Commitment: Technological Expertise + Rigorous Testing, Setting a Benchmark for Marine Equipment
As a professional enterprise deeply rooted in the marine equipment industry, Zhenjiang Kylin Marine adheres to the core R&D philosophy of "Safety, Reliability, and Technological Leadership". The WS series Marine Clear View Screen has undergone multiple rounds of environmental simulation tests and real-ship verifications, fully complying with IMO and classification society standards. It seamlessly integrates with various vessel wheelhouse systems, providing global ship owners with a vision solution that balances stability and cost-effectiveness.
Going forward, we will continue to focus on the marine safety equipment sector, driving product upgrades through technological innovation to safeguard the global shipping industry. For more technical details or customized services of the WS series Marine Clear View Screen, please contact our international partner MATCHAU marine for further process!
